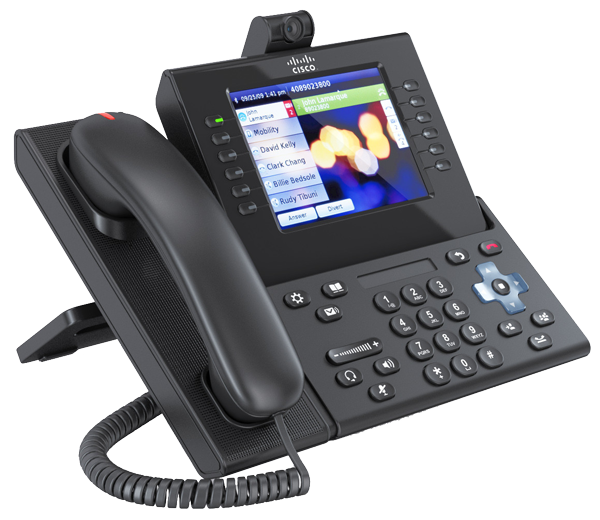

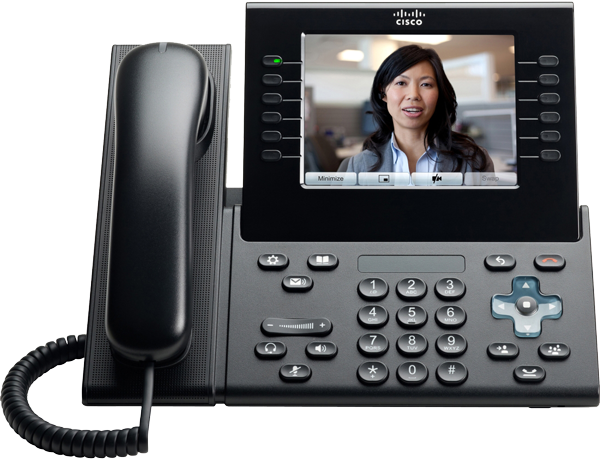

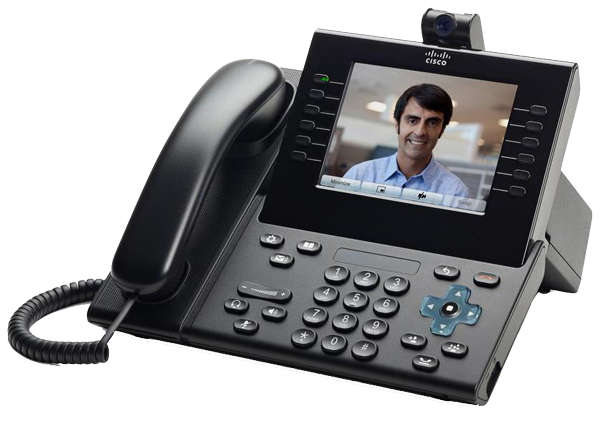

CISCO IP VIDEO PHONE 9971 USEDThe Cisco Unified IP Phone 9971 is an executive class collaboration endpoint that provides voice, video, applications and accessories. Highlights include Gigabit Ethernet, Wideband Audio, Color Touchscreen Display, desktop Wi-Fi connectivity along with a new industrial …



The Cisco Unified IP Phone 9971 is an executive class collaboration endpoint that provides voice, video, applications and accessories. Highlights include Gigabit Ethernet, Wideband Audio, Color Touchscreen Display, desktop Wi-Fi connectivity along with a new industrial design and user interface designed for simplicity and high usability. Accessories, sold separately, include a standard definition USB camera, Jawbone ICON for Cisco Bluetooth headset, color Key Expansion Module plus support for Bluetooth, USB, Secure Digital Input Output (SDIO) devices. Application support includes XML capabilities.

Features and Benefits

●   Newly developed industrial design and user experience designed for use with its VGA touchscreen display

●   H.264 video support for 2-way standard definition calling with USB support for the Cisco Unified IP Camera

●   Choice of 802.11 a/b/g desktop wi-fi connectivity or Gigabit Ethernet network connectivity and switch port available for a downstream PC

●   Embedded Bluetooth radio and 2 USB ports for headsets and the camera

●   Firmware support for XML applications






Ergonomic Design

Highly usable and
intuitive arrangement of lines, features and calls. Transfer, Conference and
Hold appear on hard keys to reduce the number of presented softkeys to a
maximum of 4 per call state.



This model can be
ordered as Arctic White or Charcoal Gray. Handsets are available
internationally as slimline (5oz, 140g) or standard (6oz, 170g) and can be
mixed and matched between users within the same work environment to enable a
feeling of customization and ownership among the users.



VGA presentation for
calling, video calling and applications. 5.6-inch (14 cm) graphical TFT color
touchscreen display, 24-bit color depth, 640 x 480 effective pixel
resolution, with backlight. Display also supports localization requiring
double-byte Unicode encoding for fonts.



Internal 2-port
Cisco Ethernet switch allows for a direct connection to a 10/100/1000 BASE-T
Ethernet network through an RJ-45 interface with single LAN connectivity for
both the phone and a co-located PC. System administrator can designate
separate VLANs (802.1Q) for the PC and phone, providing improved security and
reliability of voice and data traffic.


Desktop Wi-Fi

As an alternative to
wired Ethernet, this model supports an on-board wi-fi radio and antenna that
enables connectivity to a wi-fi access point thereby saving on the labor
costs of pulling Ethernet cables to every work location. Complete Wi-Fi
specifications are included in Table 4.



Mobility for headset
users within 30 feet of their desktop to enable the freedom to go to the
printer, a colleague’s desk or nearby private location while on a call. The
۹۹۷۱ supports the Hands-free and Headset Bluetooth profiles.



۲ USB ports
accelerate the usability of call handling and applications by enabling
accessories such as the Cisco Unified IP Camera, wired and wireless headsets.


External Audio Ports

General Purpose
Audio In and Audio Out ports enable a relaxed speakerphone experience over
external speakers and microphone.


Secure Digital Input
Output (SDIO)

Enables an
additional option for portability and presentation of confidential data,
video and sample applications.


۶ Lines Expanding to
۱۱۴ with 3 Key Expansion Modules

The convenience of
many speed dials or programmable features, or the necessity of following the
activity of many lines. Up to 200 calls supported per device.



۶ feature buttons
with state indicating LEDs

۶ call session
buttons with state indicating LEDs

Directories, Voicemail

Transfer, Hold

Volume Up/Down

Back-lit Mute,
Speakerphone, Headset

Back, End Call,
۵-Way Navigation Pad

Arabic keypad (only
available through unique SKUs, see table 6 for more details)




Key Expansion Module

separately, enables advanced use of lines, speed dials and features.


Cisco Unified IP

separately, enables 2-way video calling between phones or video conferencing
through a media conference unit.


Cisco Unified Video
Advantage Support

Alternatively to
supporting the Cisco Unified IP Camera, the Cisco Unified Video Advantage
camera and application (running on a PC) are also supported.


Headset Support

Integrated design
& advanced, updateable firmware for Jawbone ICON for Cisco Bluetooth
headset which also works with all major mobile phone models. Also supports
standard Bluetooth and USB headsets via the hands-free and headset Bluetooth
profiles. Wideband analog headset support also provided via a dedicated RJ9
headset port on the rear of the phone.




New User Experience

organization of lines, speed dials and programmable features separate from
call appearances. Great for those who make few calls per day; better for
those who handle dozens of calls per hour.


SIP Signaling

SIP interoperation
with the call control and partner applications enables a rich unified
communications solution.


Application Support

XML applications
provided by Cisco’s application development partners or customers’ own
development staff.


اطلاعات بیشتر


140g) or Standard (6oz, 170g) handset, Arctic White or Charcoal Gray color Slimline (5oz


SIP for signaling H.264 for video

Language Support

Arabic, Bulgarian, Catalan, Chinese (Hong Kong), Chinese (People’s Republic of China), Chinese (Taiwan), Croatian, Czech, Danish, Dutch, English – plus localized prompts for the UK, Estonian, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Serbian (Republic of Montenegro), Serbian (Republic of Serbia), Slovak, Slovenian, Spanish (Spain), Swedish, Thai, Turkish

Physical Dimensions

9.2” (23.4 cm) x 10.33” (26.25 cm) x 1.56” (3.97 cm) In slab mode with the footstand removed


class 4. The 9971 is compatible with both class 3 and class 4 IEEE PoE switch blades and supports both Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol – Power over Ethernet (LLDP-PoE), IEEE Power over Ethernet 802.3af and 802.3at supported

Operational Temperature

32 to 104°F (0 ~ 40°C)

Relative Humidity

10 to 95% (noncondensing)

Storage Temperature

14 to 140°F (-10 to 60°C)

Quantity Shipped per Pallate

320 units



Product Type:

IP Video Phone
