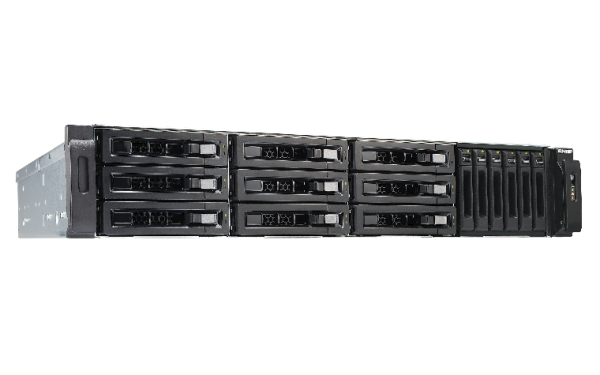

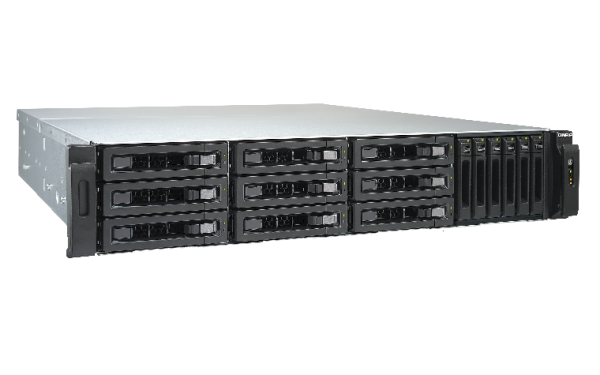

Qnap Storage Tvs Ec1580MU Sas RP R2

QNAP TVS-EC1580MU-SAS-RP R2 is the world’s first unified NAS supporting Auto Tiering to deliver ongoing optimization of data across high-performance SSD, 12Gbps SAS drives and high-capacity SATA disks. Powered by an Intel® Xeon E3 CPU, the 40GbE-ready TVS-EC1580MU-SAS-RP R2 delivers exceptional perf…

توضیحات

Qnap Storage Tvs Ec1580MU Sas RP R2

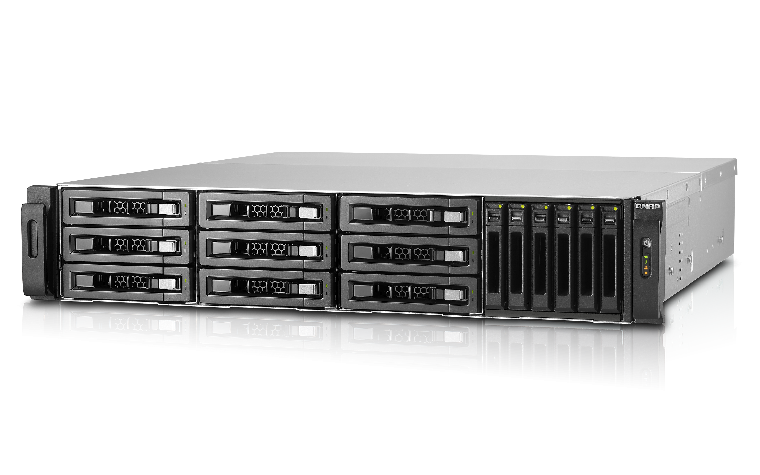

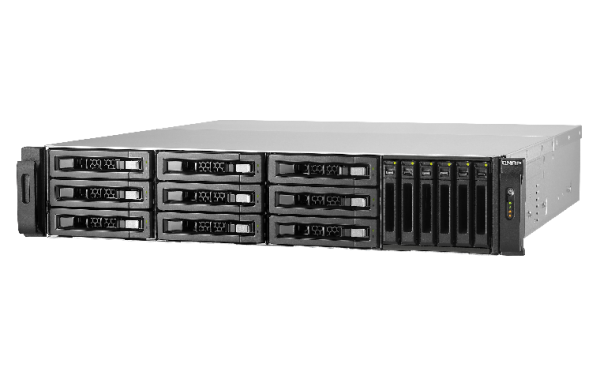

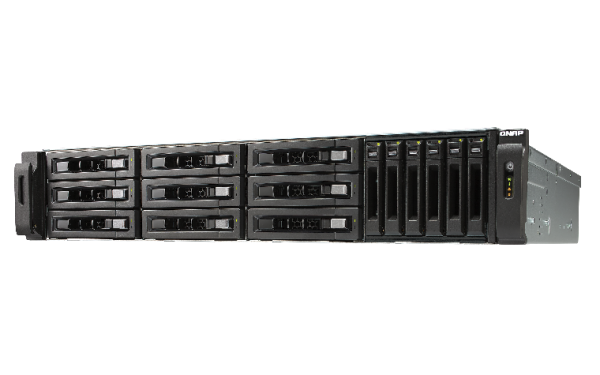

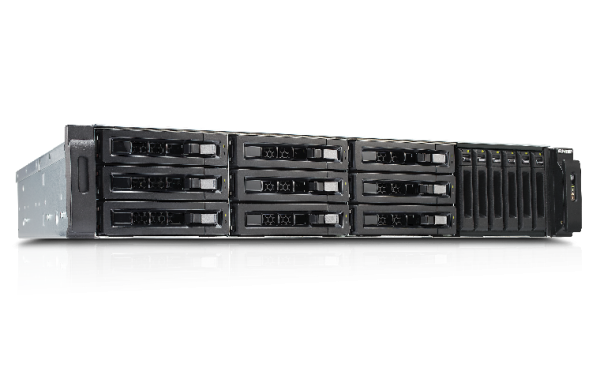

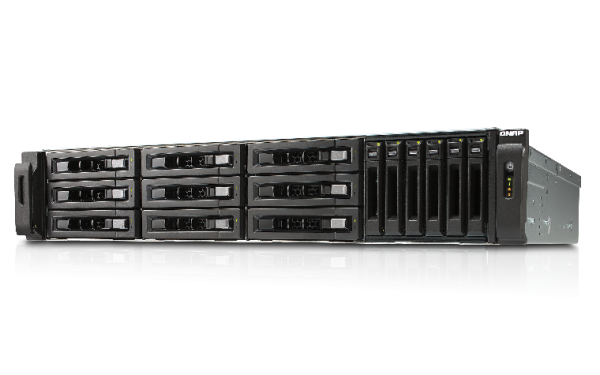

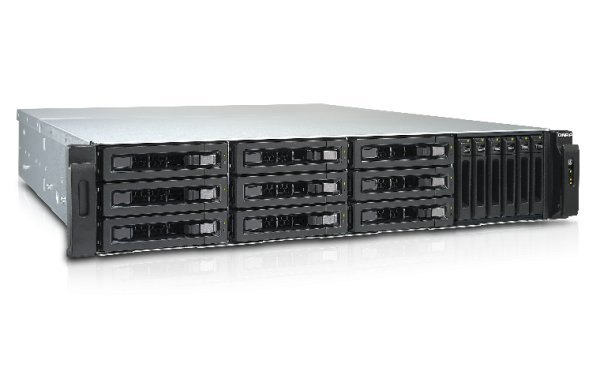

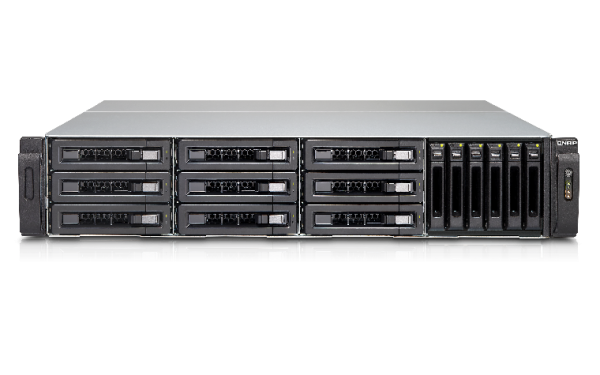

QNAP TVS-EC1580MU-SAS-RP R2 is the world’s first unified NAS supporting Auto Tiering to deliver ongoing optimization of data across high-performance SSD, 12Gbps SAS drives and high-capacity SATA disks. Powered by an Intel® Xeon E3 CPU, the 40GbE-ready TVS-EC1580MU-SAS-RP R2 delivers exceptional performance and supports cross-platform file sharing, comprehensive backup solutions, iSCSI & virtualization applications, and more practical business functions. With the powerful QTS operating system, the TVS-EC1580MU-SAS-RP R2 performs as a reliable, scalable and unbeatable unified and tiered storage solution for businesses.

Built-in 10GbE, highly-efficient storage solution with high speed network for HD video editing and sharing3,800+ MB/s throughput and 238,000+ IOPSQtier Technology drives Auto Tiering for optimal storage efficiencyBuilt-in 256GB mSATA modules for caching, beneficial to IOPS-demanding applicationsScalable design, up to 1,102 TB total capacityVirtualization-ready, centralized data storage, backup, sharing and disaster recoveryBackward compatible with SAS/SATA 6Gbps drives

اطلاعات بیشتر

Internal Cache Port

please visit http://shop.qnap.com/, Two mSATA port on board for read caching. The standard system is shipped with two 128GB mSATA flash. For the optional mSATA flash

Dimensions

Sleep mode: 80.41 In Operation: 166.58 W (with 9 x 1TB hard drive installed)

CPU

Intel® Xeon® E3-1246 v3 Family 3.5 GHz Quad-core Processor

USB

4x USB 3.0 port (rear) 4x USB 2.0 port (rear) Support USB printer, and USB UPS etc., pen drive, USB hub

Hard Drive

9 x 3.5-inch SAS12Gbps, please visit https://www.qnap.com/compatibility, SAS/SATA 6Gbps/3Gbps hard drive or 2.5-inch SAS/SATA SSD hard drive 6 x 2.5-inch SAS/SATA SSD hard drive NOTE: The standard system is shipped without hard drives. For the hard drive compatibility list

PCIe Slot

2 (Right slot: 1* PCIe Gen3 x8; Left slot: 1* PCIe Gen3 x4) Note: The PCIe Gen3 x8 slot is occupied by a 10GbE network adapter.

Form Factor

4U, rackmount

Weight

Net weight (NAS only) : 14.18 kg/ 31.26 lb Gross weight (with packing and accessories) : 21.41 kg/ 47.20 lb

Power Consumption

Sleep mode: 129.43 In Operation: 263.81 W (with 24 x HITACHI HUS724020ALA640 hard drive installed

Power Supply

Redundant power: Input 90~264VAC; 450W x 2

Fan

4 x 6 cm smart cooling fan

Relative Humidity

5~95% non-condensing, wet bulb: 27˚C.

Hard Drive Tray

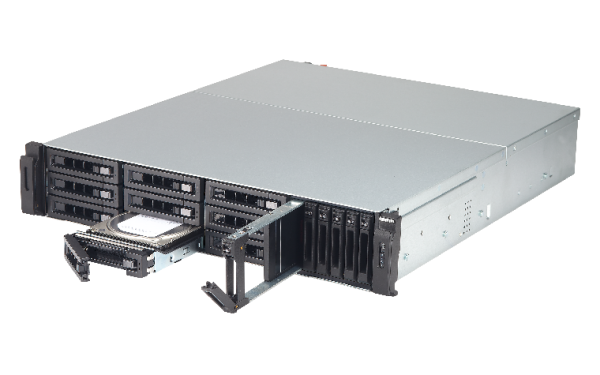

15 x hot-swappable and lockable tray

Flash Memory

512MB DOM

Sound Level

Sound pressure (LpAm): 57.3 dB(A)

LAN Port

Built-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports 40GbE is optional Note: 1. For the optional network card compatibility list, please refer to chapter 6 in the Turbo NAS Hardware Manual., please visit Compatibility list 2. For the information of network card installation

LED Indicators

10 GbE, LAN, Status, storage expansion port status

Temperature

0-40˚C

Alarm Buzzer

System warning

Buttons

System: Power button and reset button

Memory

please refer to the QNAP RAM Module Installation Guide, the original 4GB RAM modules must be removed. For the information of RAM module installation and compatible NAS models
