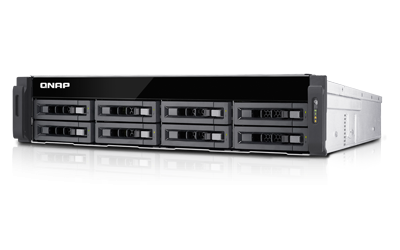

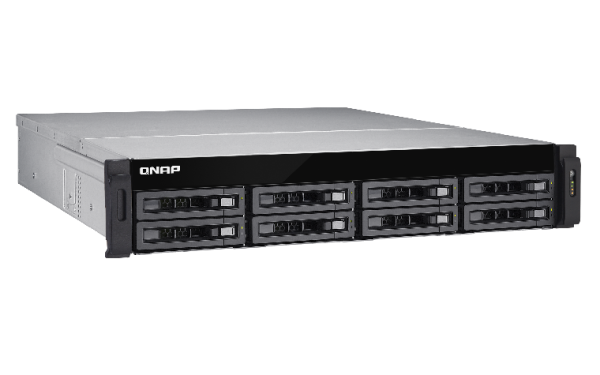

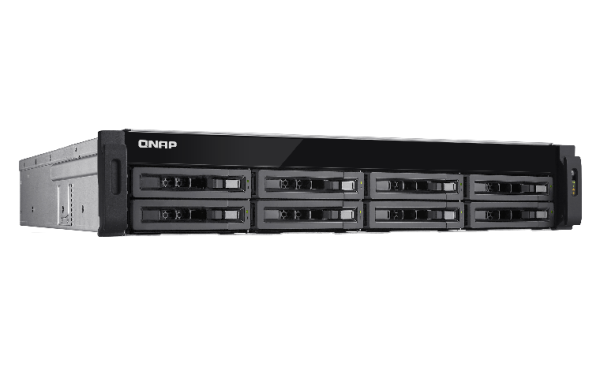

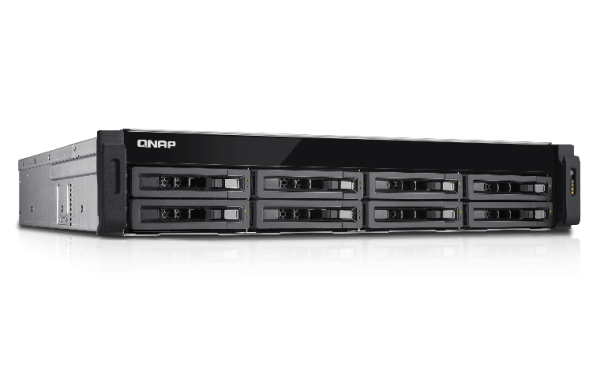

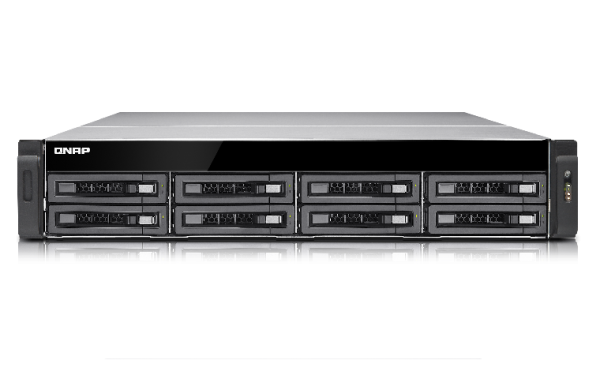

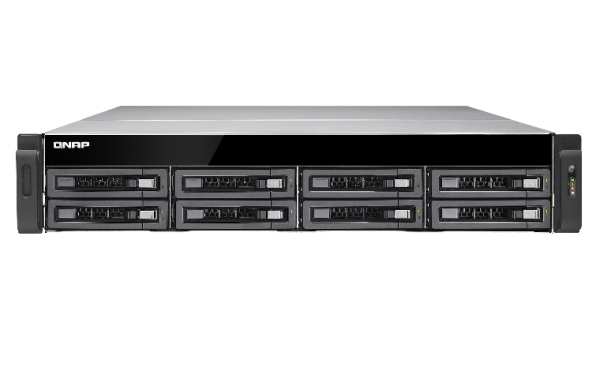

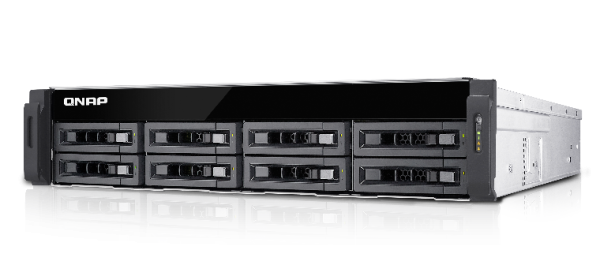

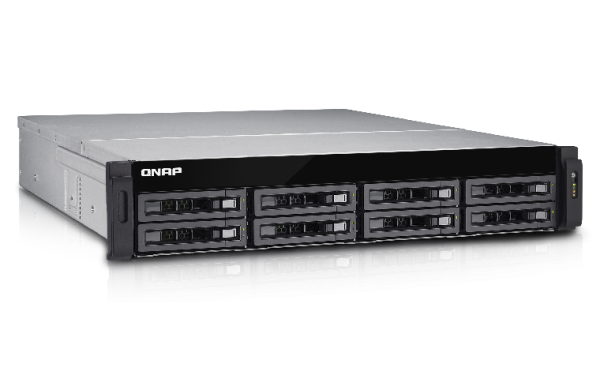

Qnap Storage Ts Ec880U R2
TS-EC880U R2, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TS-EC880U R2 is 10GbE-ready, delivers exceptional performance, and supports cross-platform file sharing,…
- توضیحات
- اطلاعات بیشتر
توضیحات

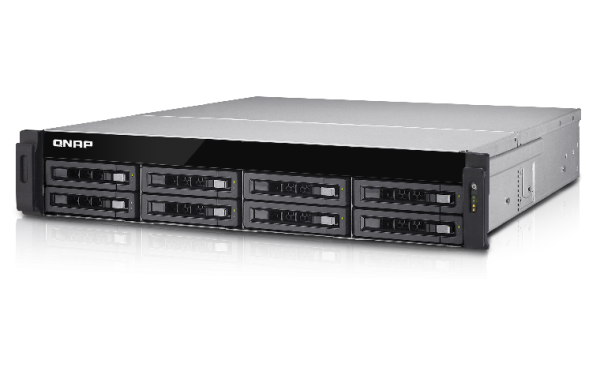

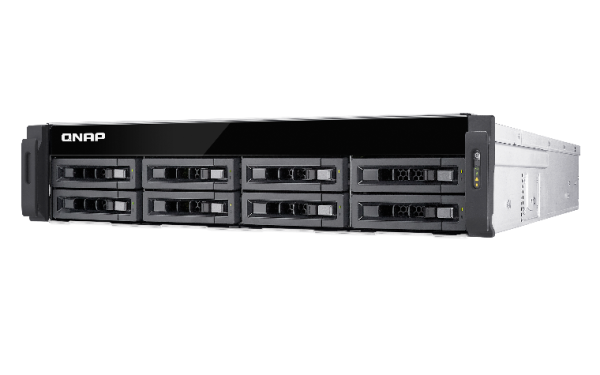

Qnap Storage Ts Ec880U R2
TS-EC880U R2, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TS-EC880U R2 is 10GbE-ready, delivers exceptional performance, and supports cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many practical business functions, making it the ideal choice for SMBs to secure important business data. It also includes abundant multimedia applications backed by its powerful hardware specifications.
Built-in 10GbE, highly-efficient storage solution for HD video editing and sharing3,700+ MB/s throughput and 400,000+ IOPSTwo internal cache ports and up to 4 SSDs for cachingScalable design, up to 816TB raw capacityVirtualization-ready, centralized data storage, backup, sharing and disaster recovery
اطلاعات بیشتر
| Temperature | 0-40˚C |
|---|---|
| Alarm Buzzer | System warning |
| Memory | please refer to the QNAP RAM Module Installation Guide, the original 4GB RAM modules must be removed. For the information of RAM module installation and compatible NAS models |

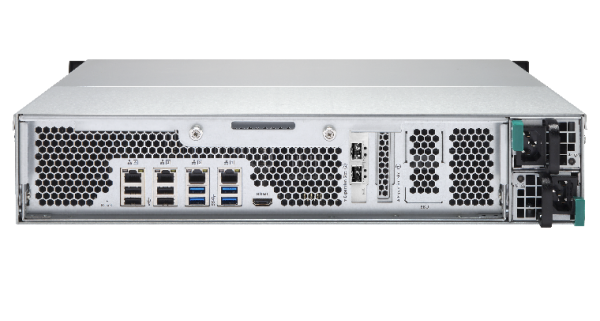

| USB | 4x USB 3.0 port (rear) 4x USB 2.0 port (rear) Support USB printer, and USB UPS etc., pen drive, USB hub |
| Hard Drive | 6Gbps/3Gbps hard drive SSD hard drive NOTE: The standard system is shipped without hard drives. For the hard drive compatibility list, 8 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA, please visit Compatibility list |
| PCIe Slot | 2 (Right slot: 1* PCIe Gen3 x8; Left slot: 1* PCIe Gen3 x4) Note: The PCIe Gen3 x8 slot is occupied by a 10GbE network adapter. |
| Form Factor | 4U, rackmount |
| Weight | Net weight (NAS only) : 14.39 kg/ 31.72 lb Gross weight (with packing and accessories) : 20.54 kg/ 45.28 lb |
| Power Consumption | Sleep mode: 73.38 In Operation: 133.88 W (with 12 x 1TB hard drive installed) |
| Fan | 4 x 6 cm smart cooling fan |
| Power Supply | Redundant power: Input: 47-63 Hz; 100-127V~/ 8A; 200-240V/ 4A Output: 400W |
| Buttons | System: Power button and reset button |
| LED Indicators | 10 GbE, eSATA, LAN, Status, storage expansion port status |
| LAN Port | Built-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports 40GbE is optional Note: 1. For the optional network card compatibility list, please refer to chapter 6 in the Turbo NAS Hardware Manual., please visit Compatibility list of Expansion Card 2. For the information of network card installation |

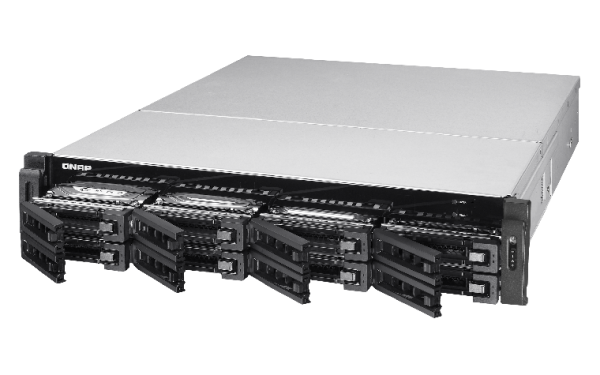

| Hard Drive Tray | 8 x hot-swappable and lockable tray |
| Flash Memory | 512MB DOM |
| Model Name | TS-EC880U-E3-4GE-R2 TS-EC880U-i3-4GE-R2 TS-EC880U-i3-8G-R2 |
| Sound Level | Sound pressure (LpAm) :55.2 dB(A) |
| Dimensions | 88(H) x 442.5(W) x 530.5(D) mm 3.46(H) x 17.42(W) x 20.89(D) inch |
| Internal Cache Port | please visit http://shop.qnap.com/, Two mSATA port on board for read caching Note: The standard system is shipped without mSATA flash. For the optional mSATA flash |
| Relative Humidity | 5~95% non-condensing, wet bulb: 27˚C. |
| CPU | TS-EC880U-E3-4GE-R2: Intel® Xeon® E3-1246 v3 Quad-core processor TS-EC880U-i3-4GE-R2: Intel ® Core i3-4150 processor TS-EC880U-i3-8G-R2:Intel® Core i3-4150 processor |
