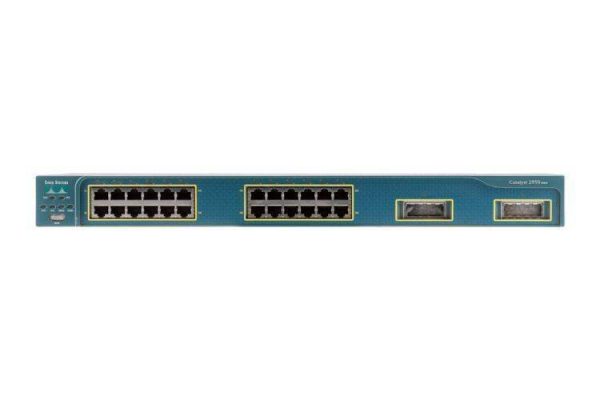

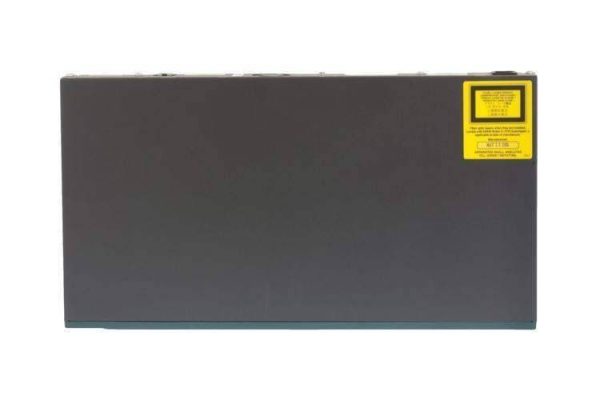

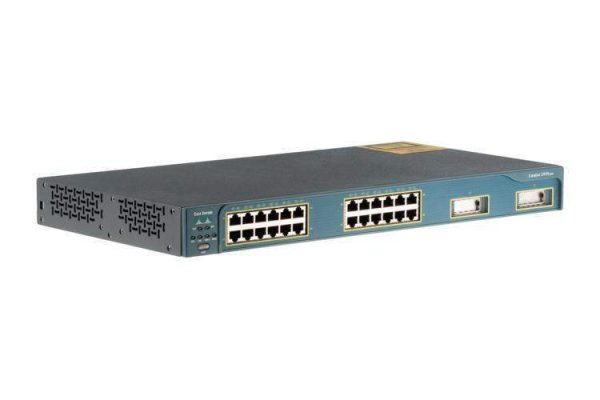

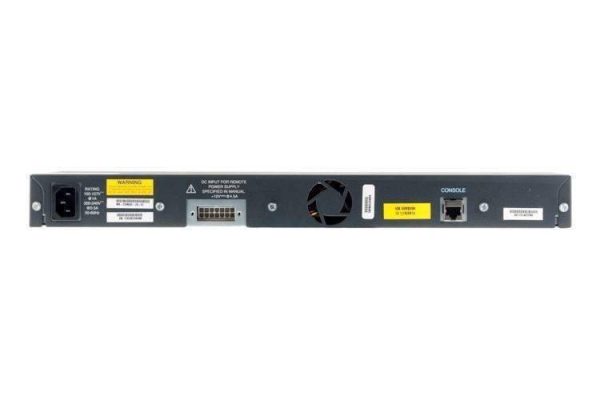

CISCO CATALYST WS-C2950-24-EL SWITCH USED

توضیحات

CISCO CATALYST WS-C2950-24-EL SWITCH USED

Cisco Catalyst 2950 Series switches are fixed-configuration models that provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity for small and medium-sized networks. The Cisco Catalyst 2950 Series is an affordable product line that brings intelligent services, such as enhanced security, high availability, and advanced quality of service (QoS), to the network edge – while maintaining the simplicity of traditional LAN switching.

Embedded in Cisco Catalyst 2950 Series switches is Cisco Cluster Management Suite (CMS) Software, which allows users to simultaneously configure and troubleshoot multiple Catalyst desktop switches using a standard Web browser. In addition to Cisco CMS Software, Cisco Catalyst 2950 Series switches provide extensive management tools using Simple Network Management Protocol (SNMP) network management platforms such as CiscoWorks. With the newly launched Cisco Express Setup, users now have the option to set up the switch through a Web browser, eliminating the need for more complex terminal emulation programs and knowledge of the command-line interface (CLI). Cisco Express Setup reduces the cost of deployment by enabling less-skilled personnel to quickly and simply set up switches.

Cisco 2950 Series 24 Port Switch, WS-C2950G-24-EICisco Description:The Catalyst 2950 Series is an affordable product line that brings intelligent services, such as enhanced security, high availability and advanced quality of service (QoS), to the network edgewhile maintaining the simplicity of traditional LAN switching. WS-2950G-24-EI has 24 fixed autosensing 10/100 Ethernet ports and 2 GBIC module slots

PRODUCT DETAILSDevice TypeSwitch – 24 ports – Managed – stackableEnclosure TypeDesktop 1USubtypeFast EthernetPorts24 x 10/100 + 2 x GBICMAC Address Table Size8K entriesRemote Management ProtocolSNMP, RMON, TelnetFeaturesFull duplex capability, trunking, stackableCompliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1xPowerAC 120/230 V ( 50/60 Hz )Dimensions (WxDxH)44.5 cm x 33 cm x 4.4 cmWeight4.5 kgManufacturer WarrantyLimited lifetime warrantyGENERALDevice TypeSwitch – 24 ports – Managed – stackableEnclosure TypeDesktop – 1USubtypeFast EthernetPorts24 x 10/100 + 2 x GBICMAC Address Table Size8K entriesRemote Management ProtocolSNMP, RMON, TelnetFeaturesFull duplex capability, trunking, stackableCompliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1xRAM16 MB – SDRAMFlash Memory8 MB FlashStatus IndicatorsPort status, link activity, collision status, powerDIMENSIONS & WEIGHTWidth44.5 cmDepth33 cmHeight4.4 cmWeight4.5 kgENVIRONMENTAL PARAMETERSMin Operating Temperature0 °CMax Operating Temperature45 °CHumidity Range Operating10 – 85%Max Altitude Operating3 kmMISCELLANEOUSMTBF160,000 hoursPOWERPower DeviceInternal power supplyVoltage RequiredAC 120/230 V ( 50/60 Hz )Power Consumption Operational45 WattFeaturesRedundant Power System (RPS) connectorEXPANSION / CONNECTIVITYInterfaces24 x 100Base-TX – RJ-451 x serial (RS-232) – RJ-45 – management2 x GBICInstalled Modules Qty (Max)0 (installed) / 2 (max)MANUFACTURER WARRANTYService & SupportLimited lifetime warrantyService & Support DetailsLimited warranty – lifetimeSOFTWARE / SYSTEM REQUIREMENTSSoftware IncludedEnhanced Image (EI) Software
