توضیحات

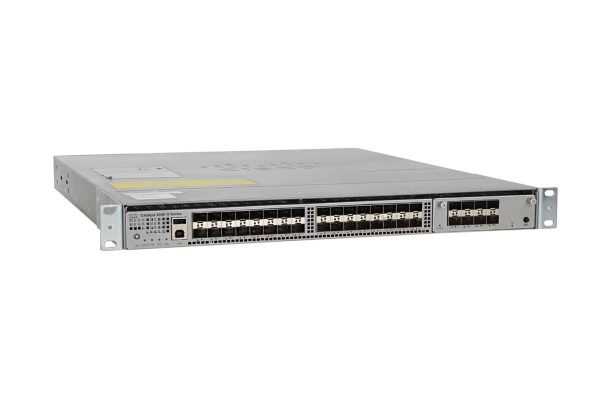

سوئیچ WS-C4500X-40X-ES سیسکو از سری سوئیچ های 4500 سیسکو می باشد که دارای 40 پورت Port 10G Ent با جهت باد فن Front-to-Back می باشد.

مشخصات کلی سوئیچ سیسکو WS-C4500X-40X-ES

Product Code	WS-C4500X-40X-ES
Product Type	Layer 3 Switch
Number of Total Expansion Slots	40
Expansion Slot Type	SFP+
Shared SFP Slot	No
PoE (RJ-45) Port	No
Expansion Module (Optional)	8×10 GE SFP+/SFP – C4KX-NM-8SFP+
Management Port	10/100/1000 Base-T
USB Port	Type A (storage and boot) up-to 4 GB
Dual Power Supply	Yes
Field Replaceable Fans	Yes (5 fans)
Fan Redundancy	No performance impact with single fan failure
System Throughput	Up to 800 Gbps
Forwarding Entries	16×10 GE Port Base SKU: IPv4: 64K, IPv6: 32K
Flexible Netflow Entries	128K
Onboard Memory (SRAM DDR-II)	4 GB
Port Buffers	32-MB Shared Memory
CPU	Dual Core 1.5 GHz
NVRAM	2 GB
Optional External Memory (SD Card)	2 GB
System Power Consumption	330W nominal/400W max ·Power supplies, either AC-input or DC-input, are not included in the basic configuration; they are ordered separately
Airflow	Back-to-front airflow (fan assemblies and the power supplies are color coded blue)
Mean time between failures (MTBF)	199,720 h
Chassis dimensions	1.75 x 17.25 x 21 in. (4.4 x 43.8 x 53.3 cm) (H x W x D)
Chassis weight	·20 lb (9.07 kg) (without power supplies) ·22 lb (9.98 kg) (with one power supply installed) ·24 lb (10.89 kg) (with two power supplies installed)
