Qnap Storage Ts Ec2480U R2

تومان0

دسته: QNAP, QNAP STORAGE ENTERPRISE NAS برچسب: ENTERPRISE NAS, qnap

توضیحات

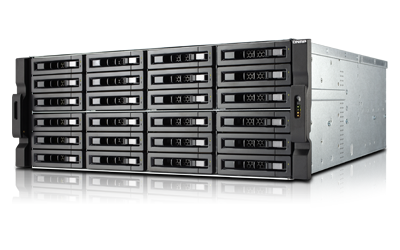

QNAP TS-EC2480U R2, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TS-EC2480U R2 is 10GbE-ready, delivers exceptional performance, and supports cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many practical business functions, making it the ideal choice for SMBs to secure important business data. It also includes abundant multimedia applications backed by its powerful hardware specifications.

Built-in 10GbE, highly-efficient storage solution for HD video editing and sharing3,700+ MB/s throughput and 410,000+ IOPSTwo internal cache ports and up to 4 SSDs for cachingScalable design, up to 912TB raw capacityVirtualization-ready, centralized data storage, backup, sharing and disaster recovery

توضیحات تکمیلی

Relative Humidity	5~95% non-condensing , wet bulb: 27˚C.
Power Consumption	Sleep mode: 129.43 In Operation: 263.81 W (with 24 x HITACHI HUS724020ALA640 hard drive installed)
LED Indicators	10 GbE , eSATA , LAN , Status , storage expansion port status
CPU	TS-EC2480U-E3-4GE-R2: Intel® Xeon® E3-1246 v3 Quad-core processor TS-EC2480U-i3-4GE-R2: Intel ® Core i3-4150 processor TS-EC2480U-i3-8G-R2:Intel® Core i3-4150 processor
Memory	please refer to the QNAP RAM Module Installation Guide , the original 4GB RAM modules must be removed. For the information of RAM module installation and compatible NAS models
USB	4x USB 3.0 port (rear) 4x USB 2.0 port (rear) Support USB printer , and USB UPS etc. , pen drive , USB hub
Hard Drive	24 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA , 6Gbps/3Gbps hard drive SSD hard drive NOTE: The standard system is shipped without hard drives. For the hard drive compatibility list , please visit Compatibility list
PCIe Slot	2 (Right slot: 1* PCIe Gen3 x8; Left slot: 1* PCIe Gen3 x4) Note: The PCIe Gen3 x8 slot is occupied by a 10GbE network adapter.
Form Factor	4U , rackmount
Weight	Net weight (NAS only) : 23.08 kg/50.88 lb Gross weight (with packing and accessories) : 28.56 kg/ 62.96 lb
Internal Cache Port	please visit http://shop.qnap.com/ , Two mSATA port on board for read caching Note: The standard system is shipped without mSATA flash. For the optional mSATA flash
Fan	4 x 8 cm smart cooling fan
Power Supply	Redundant power: Input: 50-60 Hz; 100-127V~/ 8.5A; 200-240V/ 4.2A Output: 650W
Dimensions	176.15(H) x 442.5(W) x 530.5(D) mm 6.94(H) x 17.42(W) x 20.89(D) inch
Sound Level	Sound pressure (LpAm) :48.3 dB(A)
Model Name	TS-EC2480U-E3-4GE-R2 TS-EC2480U-i3-4GE-R2 TS-EC2480U-i3-8G-R2
Flash Memory	512MB DOM
Hard Drive Tray	24 x hot-swappable and lockable tray
LAN Port	Built-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports 40GbE is optional Note: 1. For the optional network card compatibility list , please refer to chapter 6 in the Turbo NAS Hardware Manual. , please visit Compatibility list of Expansion Card 2. For the information of network card installation
Buttons	System: Power button and reset button
Alarm Buzzer	System warning
Temperature	0-40˚C
