روتر شبکه ASR 1004 سیسکو از مجموعه روتر های شبکه ASR 1000 سیسکو می باشد که قابلیت اتصال چندین شرکت WAN و همچنین رمزگذاری و مدیریت پهنای باند و ترافیک شبکه را از سرعت ۲٫۵ تا ۲۰۰ گیگابیت بر ثانیه را کنترل می کند.
این در حال است که از خانواده روتر ASR سیسکو، روتر شبکه ASR 1001 سیسکو، یک روتر با واحد قرار گیری ۱U و پشتیبانی از سرعت ارسال ۲٫۵ تا ۲۰ گیگابایت بر ثانیه را بر عهده دارد.
سری روتر های ASR سیسکو از سیستم عامل Cisco ISO XE بهره می برند
مشخصات

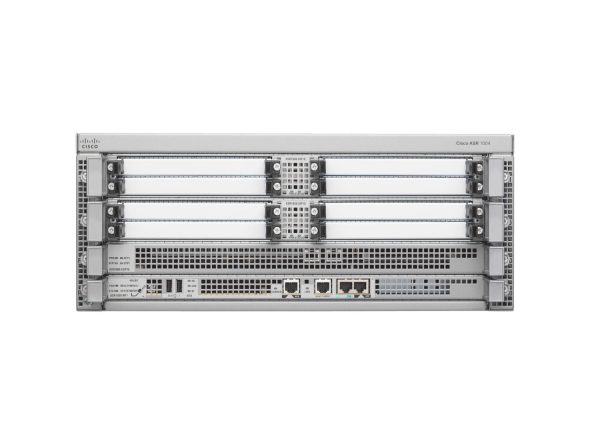

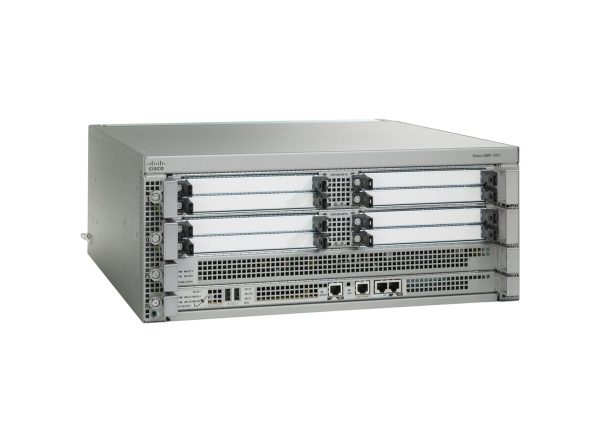

روتر شبکه ASR 1004 سیسکو
- پارت نامبر : ASR1004
- حافظه:
- ۴-GB DRAM RP1
- ۸-GB DRAM RP2
- ESP bandwidth : 10 to 40 Gbps
- Rack-mounting : 19.5 inch
- حداکثر تعداد اکسپنشن ماژول : ۴
ویژگی های کلی روتر ASR 1004 سیسکو |
|
| Physical specifications
Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 7 in. (177.8 mm)
Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: ● ۶۸٫۷ lb (31.16 kg) (with dual AC power supply, SPA blank covers, Cisco ASR 1000 Series 10-Gbps ESP [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESP [ASR1000-ESP-40], Cisco ASR 1000 Series Route Processor 1 [RP1] [ASR1000-RP1], two Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs) |
| Default memory | ۴-GB DRAM RP1
۸-GB DRAM RP2 |
| Number of SIPs or Ethernet line cards supported | ۲ |
| Shared port adapters | ۸ SPA slots |
| Ethernet port adapters | N/A |
| Cisco ASR 1000 Series ESP | ۱ ESP slot |
| Route processor | ۱ route-processor slot |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | ۰ |
| Built-in 10 Gigabit Ethernet port | No |
| Network interface module | No |
| Cisco ASR 1000 Series | Cisco ASR 1004 |
| ESP support | Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N), Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20), and Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) |
| ESP bandwidth | ۱۰ to 40 Gbps |
| ESP memory | Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) and ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2‑GB DRAM default; 2‑GB DRAM maximum
Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20): 4‑GB DRAM default; 4‑GB DRAM maximum |
| SIPs and Ethernet line cards | Supports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10), Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), and ASR 1000 Fixed Ethernet Line Cards; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE) |
| Embedded hardware-based encryption | Yes: On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4 Gbps and on Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8-Gbps crypto support throughput
Note: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N) |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release ۲٫۱ |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | ۱-GB USB flash-memory support |
| Redundant power supply | Same as for Cisco ASR 1002 |
| Power input | Same as for Cisco ASR 1002 |
| Power consumption | ● Maximum (DC): 1020W
● Maximum (AC): 960W ● Maximum (out): 765W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | ۳۲ to 104°F (۰ to 40°C) |
| Operating temperature (short-term) | ۳۲ to 122°F (۰ to 50°C) |
| Operating humidity (nominal) (relative humidity) | ۱۰ to 85% |
| Operating humidity (short-term) | ۵ to 90% |
| Storage temperature | -۴۰ to 150°F
(-۴۰ to 70°C) |
| Storage humidity (relative humidity) | ۵ to 95% |
| Operating altitude | -۵۰۰ to 10,000 feet (۱۵۲ to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards | ● FCC 47 CFR Part 15 Class A
● VCCI Class A ● AS/NSZ Class A ● ICES-003 Class A ● EN55022/CISPR 22 Information Technology Equipment (Emissions) ● EN55024/CISPR 24 Information Technology Equipment (Immunity) ● EN300 386 Telecommunications Network Equipment ● (EMC) ● EN50082-1/EN61000-6-1 Generic Immunity Standard |
| Safety Standard | UL60950-1
CSA C22.2 No. ۶۰۹۵۰-۱-۰۳ EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
